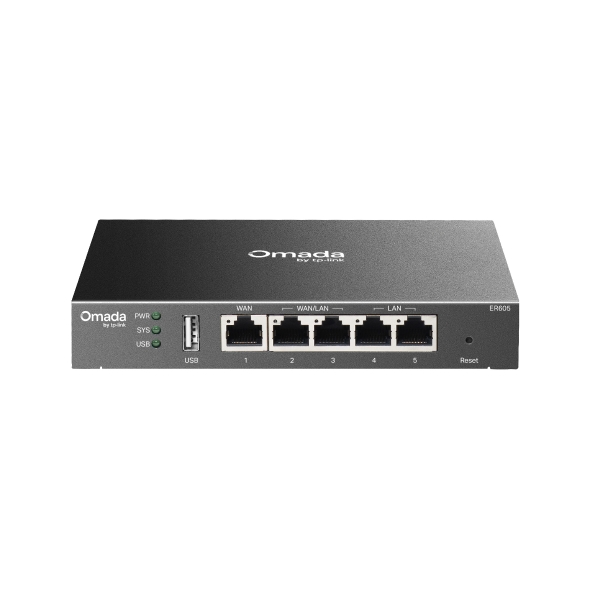

TP-Link ER605 Omada Gigabit VPN Router

The TP-Link ER605 is an Omada Gigabit VPN Router built for reliable business networking and secure internet connectivity. It provides five Gigabit Ethernet ports, including one dedicated WAN port, two LAN ports, and two configurable WAN/LAN ports for multi-WAN setups.

It supports load balancing, WAN failover, multiple VPN technologies, firewall policies, access control, and USB 4G/3G modem backup. When integrated with Omada SDN, the ER605 can be centrally managed and monitored alongside compatible Omada networking equipment.

Key Features

• 5 × Gigabit Ethernet ports
• 1 dedicated Gigabit WAN port
• 2 Gigabit LAN ports
• 2 configurable Gigabit WAN/LAN ports
• Multi-WAN load balancing
• USB 2.0 port for 4G/3G modem backup
• IPsec, OpenVPN, L2TP and PPTP VPN support
• WireGuard VPN on current v2.20 versions
• Advanced firewall and access control
• Omada centralized management
• Fanless operation
• Desktop or wall mounting
• 4 kV surge protection

Technical Specifications

VPN Support

• Up to 20 IPsec VPN tunnels
• Up to 16 OpenVPN tunnels
• Up to 16 L2TP tunnels
• Up to 16 PPTP tunnels
• Up to 20 WireGuard tunnels on supported versions

Security

• Firewall policies
• IP/MAC/URL filtering
• Access Control Lists
• DoS attack defense
• IP-MAC binding
• ARP inspection
• WAN ping blocking
• TCP/UDP/ICMP flood defense

Why Choose TP-Link ER605?

• Reliable Gigabit wired connectivity
• Supports multiple internet connections
• Useful for WAN failover and load balancing
• Secure remote networking with VPN
• USB modem support for backup connectivity
• Centralized Omada management
• Compact, fanless design
• Suitable for small and growing business networks

Ideal Applications

• Small businesses
• Offices
• Branch offices
• Home offices
• Internet cafés
• Multi-WAN networks
• VPN-connected offices
• Managed Omada networks
• Networks requiring backup internet

Benefits

• Reliable connectivity: Supports multiple WAN connections.
• Better uptime: USB modem and multi-WAN options provide backup connectivity.
• Secure networking: Multiple VPN and firewall features help protect network traffic.
• Easy management: Omada provides centralized network monitoring and management.
• Flexible deployment: Desktop and wall mounting options make installation simple.

FAQs

Does the TP-Link ER605 support multiple internet connections?
Yes. Two of its Gigabit ports can be configured as WAN ports, allowing multi-WAN load balancing and failover.

Can the ER605 use a 4G modem?
Yes. The USB 2.0 port supports compatible 4G/3G USB modems for WAN backup.

Does the ER605 support VPN?
Yes. It supports IPsec, OpenVPN, L2TP and PPTP, with WireGuard available on current supported versions.

Can it be managed through Omada?
Yes. The ER605 integrates with the Omada platform for centralized management and monitoring.

Does it have Wi-Fi?
No. The ER605 is a wired router. Wi-Fi can be provided by connecting compatible Omada access points.
