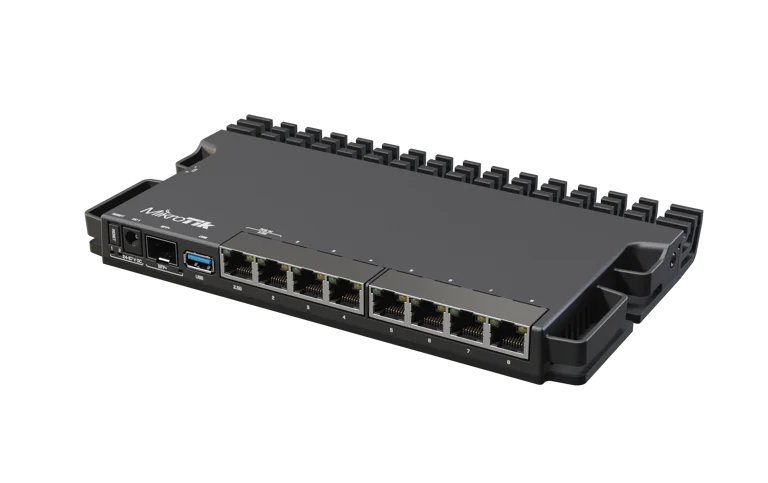

The MikroTik RB5009UG+S+IN is a compact, high-performance Ethernet router designed for demanding home labs, small and medium businesses, network infrastructure and advanced routing environments. It combines seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port and one 10G SFP+ port in a compact enclosure.

At the heart of the RB5009 is a quad-core Marvell Armada 88F7040 ARM64 processor running at up to 1.4GHz, paired with 1GB DDR4 RAM and 1GB NAND storage. It runs RouterOS v7 with a Level 5 license, providing extensive routing, firewall, VPN, VLAN, traffic-management and network-monitoring capabilities.

The router is particularly useful for high-throughput networks because it combines conventional Gigabit connectivity with 2.5G Ethernet and a 10G SFP+ interface. MikroTik connects the ports through an 88E6393 switch chip with a 10Gbps full-duplex connection to the CPU.

The RB5009 also features USB 3.0, multiple powering options and passive cooling. Its metal enclosure acts as a heatsink, helping it handle sustained workloads without requiring an active cooling fan.

Key Features

• Quad-core ARM64 processor
• Marvell Armada 88F7040 CPU
• Up to 1.4GHz CPU frequency
• 1GB DDR4 RAM
• 1GB NAND storage
• RouterOS v7
• RouterOS Level 5 license
• 7 × Gigabit Ethernet ports
• 1 × 2.5 Gigabit Ethernet port
• 1 × 10G SFP+ port
• 1 × USB 3.0 Type-A port
• 802.3af/at PoE-in
• DC and terminal-block power options
• Passive cooling
• Metal heatsink enclosure
• Compact 220 × 125 × 22mm design
• Suitable for rack mounting with optional accessories
• CPU temperature monitoring
• Up to 25W maximum power consumption

Technical Specifications

High-Speed Ethernet Connectivity

The RB5009 provides nine wired interfaces in total:

• 7 × Gigabit Ethernet
• 1 × 2.5 Gigabit Ethernet
• 1 × 10G SFP+

This combination allows the router to connect traditional Gigabit devices while also providing faster interfaces for modern servers, storage systems, uplinks and high-speed network infrastructure.

The 2.5G Ethernet port is particularly useful for devices that require more than 1Gbps but do not require a full 10Gbps connection.

10G SFP+ Connectivity

The dedicated 10G SFP+ cage provides high-speed fiber or direct-attach connectivity when paired with a compatible SFP+ module or cable.

It can be used for high-speed network uplinks, server connections, storage networking and other applications where 10Gbps connectivity is required.

Powerful Quad-Core Processing

The RB5009 uses a quad-core ARM64 Marvell Armada 88F7040 processor with a nominal frequency range of 350–1400MHz.

Combined with 1GB DDR4 RAM, the hardware provides substantial processing resources for advanced RouterOS configurations and demanding routing workloads.

RouterOS v7

The RB5009 runs RouterOS v7, MikroTik’s full-featured network operating system.

It supports advanced functionality including:

• IP routing
• Static and dynamic routing
• Firewall
• NAT
• DHCP
• DNS
• VLANs
• VPN
• IPv6
• QoS
• Bandwidth management
• Traffic monitoring
• Network diagnostics
• User management
• Routing protocols
• Container functionality on supported RouterOS configurations

The device comes with RouterOS already installed and licensed.

USB 3.0

The full-size USB 3.0 Type-A port adds flexibility for compatible peripherals and storage-related applications.

The port can provide up to 1.5A USB current according to MikroTik’s specifications.

Flexible Power Options

The RB5009 can be powered in three different ways:

1. DC jack
2. 802.3af/at PoE-in through Ethernet port 1
3. 2-pin terminal block

The DC jack and terminal input accept 24–57V DC, while PoE-in supports 802.3af/at.

This gives installers flexibility when deploying the router in different network environments.

Efficient Passive Cooling

The RB5009 uses passive cooling rather than an active fan.

MikroTik positions the CPU and switch chip on the underside of the board so that the metal enclosure can function as a large heatsink. This helps keep the device compact while avoiding fan noise.

Compact Rack-Friendly Design

The RB5009 measures just 220 × 125 × 22mm.

With the appropriate mounting accessories, up to four RB5009 routers can be installed in a single 1U rackmount space, making the platform useful where rack space is limited.

Why Choose the MikroTik RB5009UG+S+IN?

• High-performance quad-core CPU for demanding RouterOS workloads.
• 1GB DDR4 RAM provides substantial memory for advanced configurations.
• 2.5G Ethernet supports faster-than-Gigabit connections.
• 10G SFP+ provides high-speed fiber or DAC connectivity.
• Seven Gigabit ports provide plenty of standard Ethernet connectivity.
• RouterOS v7 delivers extensive networking functionality.
• Multiple power options simplify deployment.
• Passive cooling means no cooling fan.
• USB 3.0 adds peripheral and storage flexibility.
• Compact enclosure saves valuable rack and installation space.

Ideal Applications

The RB5009 is suitable for:

• Home labs
• Small and medium businesses
• Enterprise edge routing
• ISP networks
• WISP deployments
• High-speed LANs
• Fiber network uplinks
• Server networking
• NAS and storage networks
• VPN gateways
• VLAN-based networks
• Advanced firewall deployments
• Network testing and development
• Multi-Gigabit Internet connections

Benefits

Multi-Gigabit Networking

The combination of 1G, 2.5G and 10G interfaces makes the RB5009 suitable for networks transitioning beyond traditional Gigabit connectivity.

Advanced Routing

RouterOS v7 provides extensive routing, firewall, VPN and traffic-management capabilities.

High Processing Capacity

The quad-core ARM64 processor and 1GB RAM provide a strong hardware platform for demanding network configurations.

Flexible Installation

Multiple power options and optional rack mounting make deployment easier in different environments.

Silent Operation

Passive cooling eliminates the need for a fan.

Space Efficient

Four units can fit into a single 1U rack space with the appropriate mounting accessories.

Frequently Asked Questions

What is the MikroTik RB5009UG+S+IN?

It is a high-performance RouterOS-based Ethernet router with seven Gigabit ports, one 2.5G Ethernet port, one 10G SFP+ port and USB 3.0.

How many Ethernet ports does the RB5009 have?

It has eight Ethernet ports in total: seven Gigabit Ethernet ports and one 2.5 Gigabit Ethernet port. It also has one 10G SFP+ port.

Does the RB5009 support 10Gbps?

Yes. It has one 10G SFP+ port for compatible 10Gbps SFP+ modules or cables.

Does it support 2.5Gbps Ethernet?

Yes. One Ethernet port supports up to 2.5Gbps.

What operating system does it use?

The RB5009 runs RouterOS v7 and has a Level 5 RouterOS license.

Does the RB5009 support PoE?

Yes. The RB5009 supports 802.3af/at PoE-in through Ethernet port 1.

Does the RB5009 provide PoE-out?

The RB5009UG+S+IN does not provide PoE-out. It supports PoE input. MikroTik also offers the separate RB5009UPr+S+IN model with PoE-out functionality.

Does it have USB?

Yes. It has one USB 3.0 Type-A port.

Is the RB5009 fanless?

Yes. It uses passive cooling.

Can it be rack mounted?

Yes. With the appropriate mounting accessories, multiple RB5009 units can be installed in a 1U rack space.
