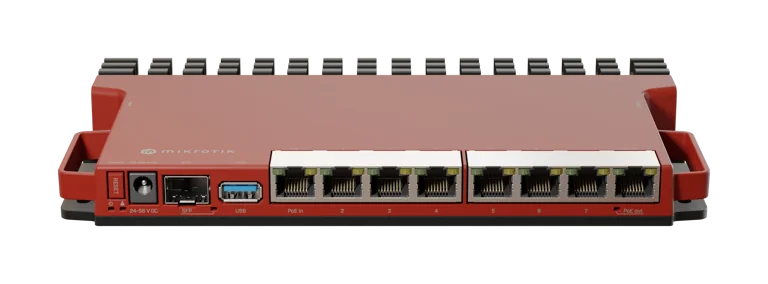

The MikroTik L009UiGS-RM is a powerful and compact wired router designed for homes, offices, businesses, network cabinets and professional networking environments. It combines eight Gigabit Ethernet ports, a 2.5G-capable SFP port, PoE functionality, USB 3.0 connectivity and MikroTik’s feature-rich RouterOS v7 into a compact enclosure designed for efficient rack deployment.

The L009 is designed as an upgraded successor to the popular RB2011 family, providing a modern dual-core ARM processor, more RAM and improved processing capabilities. MikroTik states that the L009 platform can be up to four times faster than the RB2011 in many configurations and workloads.

At the heart of the router is an IPQ-5018 dual-core CPU clocked at 800MHz, supported by 512MB of RAM and 128MB NAND storage. This hardware provides the resources required for routing, firewalling, VPN functions, bandwidth management and many other RouterOS features.

The router provides eight 10/100/1000Mbps Ethernet ports. Ether1 supports PoE-in, allowing the router to receive power through compatible 802.3af/at PoE equipment. Ether8 provides passive PoE-out for powering a compatible downstream device when the L009 is powered through its DC jack.

A major feature of the L009UiGS-RM is its SFP cage supporting both 1Gbps and 2.5Gbps connectivity. This provides a flexible fiber or high-speed network uplink option for compatible SFP modules and cables.

The router also includes a USB 3.0 Type-A port, which can be used for supported peripherals and storage or other RouterOS applications. MikroTik specifically highlights the ARM platform and USB connectivity as useful for supported container-based projects and LTE modem connectivity.

The RM version is designed for rack-oriented deployments and includes the necessary rackmount accessories. Its compact 1U-friendly form factor allows multiple L009 units to be efficiently installed in rack space.

With RouterOS v7 License Level 5, the L009UiGS-RM provides extensive networking functionality including routing, firewalling, VPN, VLANs, bandwidth management, monitoring and other advanced network-management features.

Key Features

• Dual-core IPQ-5018 ARM CPU
• 800MHz CPU frequency
• 512MB RAM
• 128MB NAND storage
• RouterOS v7
• License Level 5
• 8 × Gigabit Ethernet ports
• 1 × 2.5G-capable SFP port
• PoE-in on Ether1
• Passive PoE-out on Ether8
• USB 3.0 Type-A port
• RJ45 serial console port
• 2.5Gbps SFP support
• Hardware switch chip
• Passive cooling
• Compact rackmount-ready enclosure
• Includes rackmount accessories
• Advanced routing and firewall capabilities
• VPN support through RouterOS
• VLAN and network-management capabilities
• Container support on RouterOS/ARM
• Indoor deployment
• IP20 enclosure
• Operating temperature up to -40°C to 70°C according to the current product specification
• 24–56V DC power input
• 802.3af/at PoE-in
• Up to 40W maximum power consumption according to the current MikroTik product page.

Technical Specifications

Processor and Performance

The L009UiGS-RM uses a dual-core IPQ-5018 ARM processor running at 800MHz.

Its ARM architecture provides a significant upgrade over older MIPS-based MikroTik platforms and enables support for newer RouterOS capabilities. MikroTik states that the L009 platform can provide up to four times the performance of the RB2011 in many typical configurations.

The processor is suitable for tasks such as:

• Routing
• Firewall processing
• VLAN management
• Network address translation
• VPN processing
• Bandwidth management
• Traffic filtering
• Network monitoring
• Advanced RouterOS configurations
• Supported container applications

8 Gigabit Ethernet Ports

The L009UiGS-RM features eight Gigabit Ethernet ports, providing flexible connectivity for computers, switches, access points, servers, IP devices and other network equipment.

All eight Ethernet interfaces support:

• 10Mbps
• 100Mbps
• 1000Mbps

Ether1 has an additional PoE-in capability, while Ether8 provides passive PoE-out when the device is powered through its DC input.

2.5G SFP Connectivity

The built-in SFP cage supports Gigabit and 2.5Gbps connectivity, providing an additional high-speed uplink option.

This can be useful for:

• Fiber networking
• High-speed uplinks
• Network switches
• SFP modules
• SFP cables
• 2.5Gbps network infrastructure

MikroTik has tested various compatible SFP modules and cables for the higher-speed capability.

PoE-in and PoE-out

The L009UiGS-RM provides flexible power options.

PoE-in

Ether1 supports 802.3af/at PoE-in, allowing the router to receive power through the Ethernet connection. The supported input range is 24–56V.

PoE-out

Ether8 provides passive PoE-out for powering a compatible device.

Important: PoE-out works only when the L009 is powered through its DC jack, rather than through PoE-in.

USB 3.0 Port

The router includes one USB 3.0 Type-A port with up to 1.5A USB current.

The USB port adds flexibility for supported peripherals and RouterOS applications. MikroTik highlights potential uses such as compatible LTE modems and container-based projects.

RouterOS v7

The L009UiGS-RM comes with RouterOS v7 License Level 5 pre-installed and licensed. No separate RouterOS purchase is required.

RouterOS provides extensive functionality for:

• Routing
• Firewall configuration
• NAT
• VLANs
• VPNs
• DHCP
• DNS
• Bandwidth management
• Queues
• Traffic monitoring
• Access control
• Network diagnostics
• Advanced routing protocols
• User management

The actual available functionality depends on the RouterOS version and configuration.

Container Support

Because the L009 uses a modern ARM platform, it can support compatible RouterOS container applications.

This opens up possibilities for running supported network-related services directly on the router without requiring a separate computer. MikroTik gives applications such as Pi-hole as an example of what can be achieved with supported container functionality.

Rackmount Design

The RM version is designed for efficient installation in network cabinets and rack environments.

MikroTik’s L009 enclosure is designed to maximize rack-space efficiency, and the RM package includes rackmount accessories. MikroTik notes that multiple compatible L009/RB5009 units can be arranged within 1U rack space using the appropriate mounting configuration.

Cooling

The L009UiGS-RM uses passive cooling, meaning there is no conventional cooling fan.

The enclosure itself functions as a substantial heatsink, helping dissipate heat while keeping the device quiet.

This makes it suitable for environments where low mechanical noise is desirable.

Management and Configuration

The L009 can be configured through MikroTik’s networking tools, including:

• WebFig
• WinBox
• CLI
• MAC-based management where applicable

MikroTik’s setup documentation indicates that the initial configuration can be accessed through 192.168.88.1 or through WinBox. Users should change the default credentials and update RouterOS during initial setup.

Power Options

The L009UiGS-RM supports multiple power-input methods:

DC Jack

Supports 24–56V DC.

PoE-in

Ether1 supports 802.3af/at PoE-in.

The supplied power adapter is rated at 24V / 1.5A.

Why Choose the MikroTik L009UiGS-RM?

Modern ARM Architecture

The dual-core ARM processor provides a substantial platform upgrade over older MikroTik generations.

Eight Gigabit Ports

Provides eight wired Gigabit interfaces for flexible network deployment.

2.5G SFP

Adds support for higher-speed SFP connectivity beyond standard Gigabit networking.

PoE Flexibility

Ether1 supports PoE-in while Ether8 can provide passive PoE-out when DC powered.

RouterOS v7

Provides extensive routing, firewall, VPN, VLAN and network-management functionality.

USB 3.0

Adds support for compatible peripherals, including supported LTE modems and other applications.

Rack-Friendly Design

The RM version is designed for efficient installation in network cabinets.

Passive Cooling

Provides silent operation without a conventional cooling fan.

Ideal Applications

The MikroTik L009UiGS-RM is suitable for:

• Small and medium-sized businesses
• Office networks
• Branch offices
• Home labs
• Network laboratories
• ISP deployments
• Professional routing
• Network cabinets
• Server rooms
• Fiber network installations
• VLAN-based networks
• VPN gateways
• Firewall deployments
• Multi-device wired networks
• Network-management environments
• Container-based networking projects

Benefits

• 8 Gigabit Ethernet ports
• 2.5Gbps-capable SFP connectivity
• Modern dual-core ARM processor
• 512MB RAM
• RouterOS v7
• Level 5 RouterOS license
• PoE-in support
• Passive PoE-out support
• USB 3.0 connectivity
• Advanced firewall and routing capabilities
• VPN functionality
• VLAN support
• Container support
• Compact rack-friendly design
• Passive cooling
• Flexible power options
• Suitable for professional networking environments

What’s in the Box?

The standard package includes:

• MikroTik L009UiGS-RM router
• 24V / 1.5A power adapter
• Rackmount/fastening accessories
• Adhesive pads
• Documentation

The exact included mounting hardware can depend on the package version. MikroTik’s documentation lists the power supply, fastening set, pads and rackmount-related accessories.

Frequently Asked Questions

1. What is the MikroTik L009UiGS-RM?

The L009UiGS-RM is a professional wired MikroTik router featuring 8 Gigabit Ethernet ports, a 2.5G-capable SFP port, PoE functionality, USB 3.0 and RouterOS v7.

2. How many Ethernet ports does it have?

It has 8 × 10/100/1000Mbps Gigabit Ethernet ports.

3. Does the L009UiGS-RM support 2.5G?

Yes. Its SFP port supports up to 2.5Gbps.

4. Does it have Wi-Fi?

No. The L009UiGS-RM is a wired model and does not include Wi-Fi.

5. Does it support PoE?

Yes. Ether1 supports 802.3af/at PoE-in, while Ether8 supports passive PoE-out when the device is powered through its DC jack.

6. Can the L009 power another device?

Yes. Ether8 can provide passive PoE-out to a compatible device, subject to the specified voltage/current limitations. PoE-out requires DC-jack power.

7. Does it have USB?

Yes. It has one USB 3.0 Type-A port with up to 1.5A current.

8. What operating system does it use?

It runs MikroTik RouterOS v7 with a Level 5 license.

9. How much RAM does it have?

It has 512MB of RAM.

10. How much storage does it have?

It has 128MB of NAND storage.

11. Is the L009UiGS-RM rackmountable?

Yes. The RM version is designed for rack-oriented installation and comes with rackmount accessories.

12. Does it have a cooling fan?

No. It uses passive cooling.

13. Can it run containers?

Yes. Its ARM platform supports compatible RouterOS container functionality.

14. What power supply does it use?

The included adapter is 24V / 1.5A. The router itself accepts 24–56V DC through its DC input.

15. Is the L009UiGS-RM suitable for a small business?

Yes. Its combination of Gigabit Ethernet, 2.5G SFP, RouterOS v7, firewalling, VLANs, VPN capabilities and flexible power options makes it suitable for many small-business and professional network deployments.
